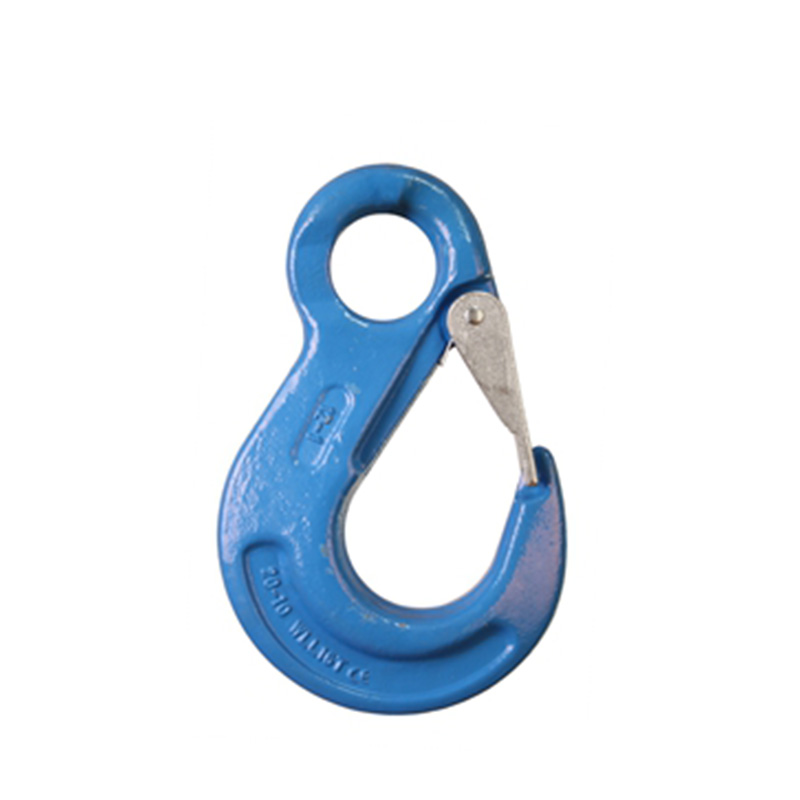

G100 eye sling hook with latch

The G100 Eye Sling Hook With Latch is a powerful hook product with high load capacity and durability. Its unique design allows it to be used with a variety of lifting equipment to meet the lifting needs of different occasions. The maximum load-bearing capacity of this hook is significant, and the working load limit is displayed directly on the hook body for quick identification by users. In addition, its appearance in green or other optional colors is both practical and beautiful, and can be customized according to user needs.

  • G100 eye sling hook with latch
  • G100 eye sling hook with latch

Advantage:

RELATED PRODHETS:

Chain Size WLL Main Dimensions (mm) Weight
mm ton D E H x L kg
6 1.4 10 18.5 21 20.5 111 0.32
8 2.5 11 25 27.5 25 137.5 0.6
10 4 16 28 33 34 171.5 1.2
13 6.7 19 38 43.5 43 219 2.2
16 10 24.5 44 50 50 260 3.5
20 16 27 52 56 55 298 7.15
22 19 29 66 62 60 330 11.5
26 26.5 35 73 75 70 367 14
32 39.3 39 87 89 66 427 17.5

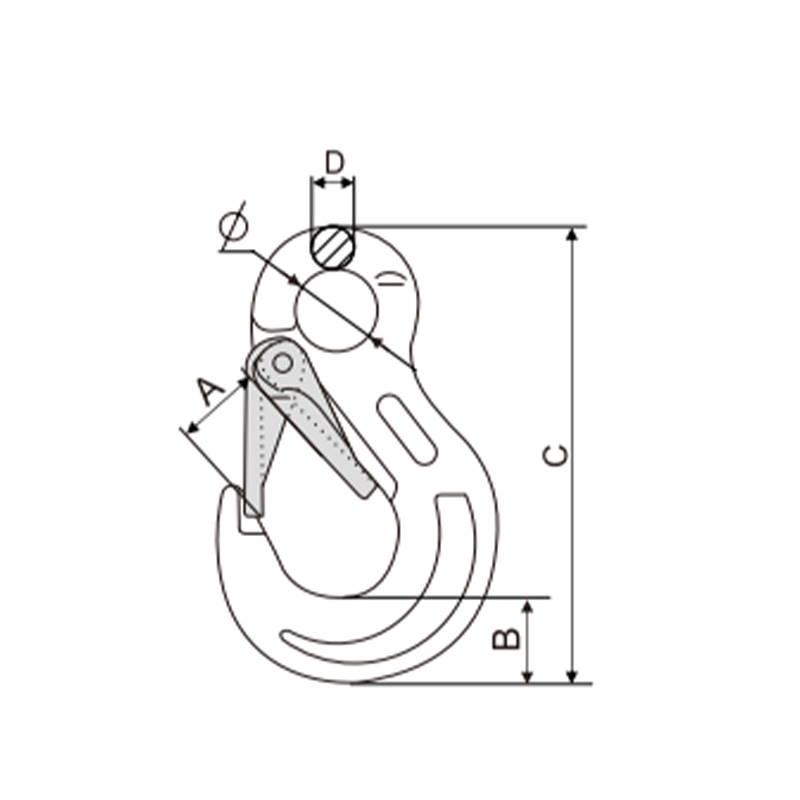

DIMENSION Drawing:

Product Description:

The G100 Eye Sling Hook With Latch is a high-strength, high-security sling hook designed for lifting and carrying heavy objects. The hook features an eye loop with a latch to ensure a secure connection of the chain or rope during lifting. The product complies with the G100 standard, which means that its working load limit (WLL) is 100% of its breaking tensile strength. This lifting hook is suitable for a variety of different chain sizes, ranging from 6mm to 32mm, to meet different load requirements.

The main parameters:

Chain Size: The size of the chain determines the applicability and load-bearing capacity of the grapple.
WLL: Working load limit, indicating the maximum weight that the grapple can bear while operating safely.
Main Dimensions (mm)：
D: The diameter of the lifting hook body is 10-39mm.
E: The width of the eye ring opening is 18.5-87mm.
H: Latch height or operating height 21-89mm.
L: The total length or maximum size of the lifting hook is 111-427mm.
Weight: The weight of the lifting hook itself is 0.32-17.5kg.

Application scope
Construction and Engineering: In construction engineering, this lifting hook can be used to lift and carry a variety of building materials, equipment and prefabricated components.
Logistics and warehousing: In the field of logistics and warehousing, it can be used for rapid loading, unloading and handling of goods to improve work efficiency.
Marine and Marine Engineering: In shipbuilding, repair and marine engineering, lifting hooks are used to lift hull sections, equipment and heavy objects.
Mining and Quarrying Industry: In mining and quarrying operations, this lifting hook can be used to lift and carry heavy objects such as ores and rocks.
Other heavy industries: In addition, it is also suitable for other industries that require lifting and handling heavy objects, such as machinery manufacturing, petrochemical industry, etc.

Precautions
Pre-Use Inspection: Before each use, the lifting hook should be carefully inspected for damage, cracks or wear, especially the chain, eye and latch sections.
Proper operation: Please ensure that the lifting hook is used correctly in accordance with the operation manual and safety regulations to avoid overloading or improper use.
Regular maintenance: Clean, lubricate and inspect lifting hooks regularly to ensure their performance and safety.
Safety training: Operators should receive relevant safety training and understand the correct use of lifting hooks and safety precautions.
