Grade 80 connecting link european type

* Grade 80: This indicates a high-strength alloy steel connecting link that has a working load limit (WLL) suitable for heavy-duty lifting tasks.
* European Type: Refers to the design and specifications of the connecting link, which conform to European standards and regulations for lifting equipment.
* Connecting Link: This type of link is used to connect different components of a lifting or rigging system, such as chains, slings, or hooks. It is often used for creating bridles or extending the reach of lifting equipment.
* Features: Grade 80 connecting links typically come with a safety latch or latch mechanism to ensure secure connections and prevent accidental releases. The link is also designed to be durable, abrasion-resistant, and suitable for use in harsh environments. It might have specific dimensions and load ratings based on different sizes and models.
  • Grade 80 connecting link european type
  • Grade 80 connecting link european type

Advantage:

RELATED PRODHETS:

Chain Size WLL Main Dimensions (mm) Weight
mm ton A L K D kg
6 1.12 15 58 42 7 0.08
7 1.5 19 71.8 54.8 8.5 0.145
7+8 2 18 79.5 62.5 8.5 0.146
10 3.15 25 93 68 10.8 0.3
13 5.3 29 117 87 15 0.7
16 8 34.5 148 108.4 19.8 1.1
18 10 38 154 112 21 1.84
18+20 12.5 41 169.5 121.5 24 1.8
22 15 48 193.5 141.5 26 3.2
26 21.2 57.5 220 158 30 4.5
32 31.5 67 281 205 37 9

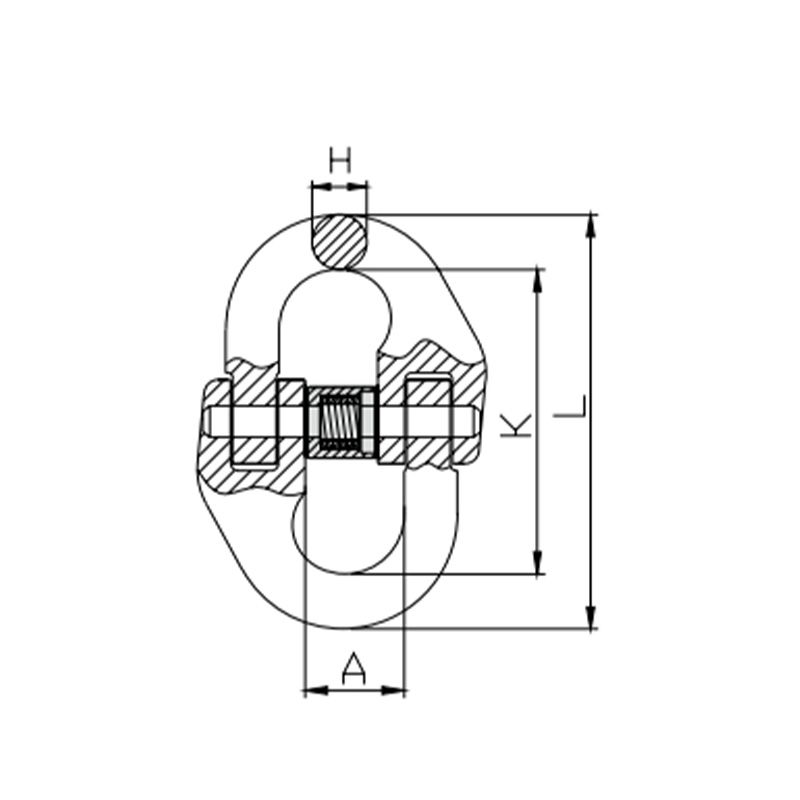

DIMENSION Drawing:

Product Description:

Introducing the Grade 80 Connecting Link European Type - the reliable and robust solution for all your heavy-duty lifting and connecting needs.
Product Specifications:
Chain Size: Available in various sizes to suit your specific requirements.
Working Load Limit (WLL): Ranging from 1.12 tons to 31.5 tons.
Main Dimensions (mm): Offering a range of dimensions for different applications.
Weight: Lightweight yet incredibly sturdy, ensuring ease of use without compromising on durability.
Product Variants:
6mm
WLL: 1.12 tons
Main Dimensions (mm): A - 15, L - 58, K - 42, D - 7
Weight: 0.08 kg
7mm
WLL: 1.5 tons
Main Dimensions (mm): A - 19, L - 71.8, K - 54.8, D - 8.5
Weight: 0.145 kg
7+8mm
WLL: 2 tons
Main Dimensions (mm): A - 18, L - 79.5, K - 62.5, D - 8.5
Weight: 0.146 kg
10mm
WLL: 3.15 tons
Main Dimensions (mm): A - 25, L - 93, K - 68, D - 10.8
Weight: 0.3 kg
13mm
WLL: 5.3 tons
Main Dimensions (mm): A - 29, L - 117, K - 87, D - 15
Weight: 0.7 kg
16mm
WLL: 8 tons
Main Dimensions (mm): A - 34.5, L - 148, K - 108.4, D - 19.8
Weight: 1.1 kg
18mm
WLL: 10 tons
Main Dimensions (mm): A - 38, L - 154, K - 112, D - 21
Weight: 1.84 kg
18+20mm
WLL: 12.5 tons
Main Dimensions (mm): A - 41, L - 169.5, K - 121.5, D - 24
Weight: 1.8 kg
22mm
WLL: 15 tons
Main Dimensions (mm): A - 48, L - 193.5, K - 141.5, D - 26
Weight: 3.2 kg
26mm
WLL: 21.2 tons
Main Dimensions (mm): A - 57.5, L - 220, K - 158, D - 30
Weight: 4.5 kg
32mm
WLL: 31.5 tons
Main Dimensions (mm): A - 67, L - 281, K - 205, D - 37
Weight: 9 kg
Key Features:
Grade 80 Strength: Crafted from high-strength Grade 80 steel for maximum durability and safety in demanding lifting applications.
European Type: Designed to meet European standards, ensuring reliability and compliance with industry regulations.
Versatile: Suitable for a wide range of heavy-duty lifting and connecting applications.
Precision Engineering: Precisely engineered dimensions for a secure and efficient connection.
Lightweight: Easy to handle and transport without sacrificing strength.
Trustworthy Performance: Built to withstand tough conditions and provide dependable performance.
Whether you're in construction, manufacturing, or any industry that demands reliable lifting and connecting solutions, our Grade 80 Connecting Link European Type is the dependable choice for your needs. Trust in its strength and precision for your most demanding tasks.
