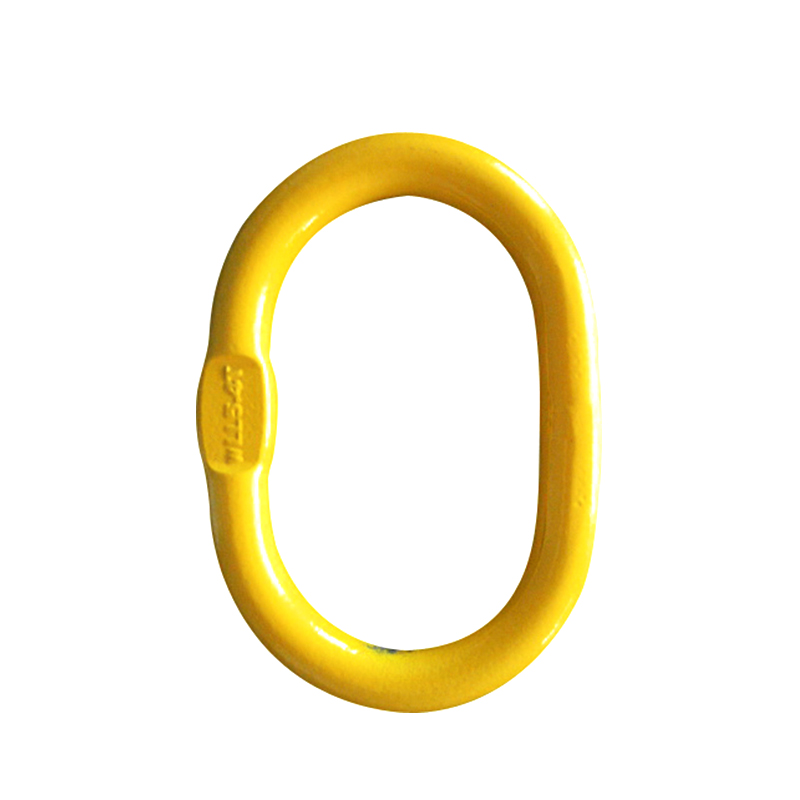

Grade 80 european type master link

A Grade 80 European Type Master Link is a component used in lifting and rigging applications, typically made from high-strength alloy steel. The "Grade 80" designation refers to the material's strength and durability, with Grade 80 steel having a minimum ultimate tensile strength of 800 N/mm² (Newtons per square millimeter), which is significantly stronger than standard steel.
  • Grade 80 european type master link
  • Grade 80 european type master link

Advantage:

RELATED PRODHETS:

WLL Main Dimensions (mm) Weight
ton A B D kg
1.6 110 60 13 0.34
2.12 110 60 16 0.54
3.15 135 75 18 0.823
5.3 160 90 22 1.5
8 180 100 26 2.32
11.2 200 110 32 3.95
14 260 140 36 6.34
17 300 160 40 8.96
21.2 340 180 45 12.8
31.5 350 190 50 16.55
45 400 200 56 23.28
56 430 220 63 32
63 460 250 72 45.76

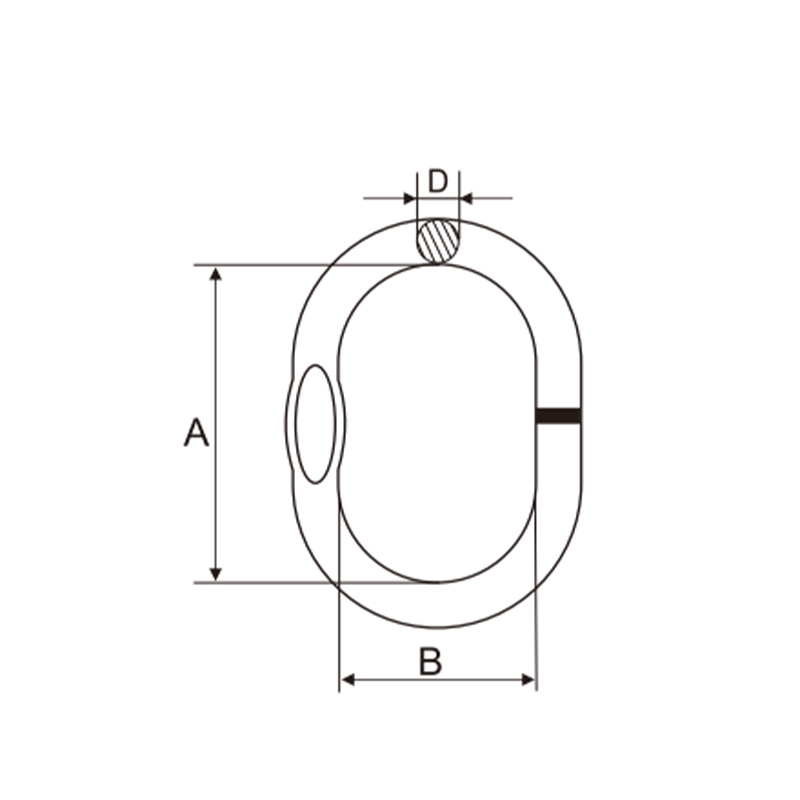

DIMENSION Drawing:

Product Description:

A Grade 80 European Type Master Link is a specialized and high-strength lifting component used in rigging and hoisting applications. Let's break down its key characteristics and features:
Grade 80 Steel: The "Grade 80" designation indicates that the master link is made from a specific alloy steel known for its exceptional strength. Grade 80 steel has a minimum ultimate tensile strength of 800 N/mm², making it significantly stronger and more durable than standard steel. This high strength is critical in ensuring the safety and reliability of lifting operations.
European Type Design: The "European Type" refers to the design and configuration of the master link. It typically has a distinctive "D" or bow-shaped design, which provides a stable and secure attachment point for lifting equipment such as hooks, chains, or slings. This design is widely recognized and used in Europe and other regions for various lifting applications.
Attachment Points: Grade 80 European Type Master Links feature one or more attachment points, which may be welded or integrated into the design. These attachment points allow for the connection of lifting hooks, chains, or other hardware, making it a crucial component in creating a safe and reliable lifting assembly.
Load Rating: The master link is typically labeled with its load rating or working load limit (WLL). The WLL represents the maximum load that the master link can safely handle during lifting operations. It's essential to never exceed this limit to ensure safety.
Safety and Durability: European Type Master Links are designed and manufactured with a focus on safety and durability. They often have safety features like safety latches or other mechanisms to prevent accidental detachment of lifting equipment. The Grade 80 steel construction ensures that the master link can withstand heavy loads and demanding conditions.
Compliance: It's crucial to use Grade 80 European Type Master Links that meet relevant industry and safety standards. This includes adhering to local regulations and guidelines for lifting equipment.
These master links are commonly used in a wide range of industries, including construction, manufacturing, and material handling, where lifting heavy loads is a regular part of operations. When using Grade 80 European Type Master Links, it's vital to follow proper lifting and rigging practices, conduct regular inspections, and ensure that all components in the lifting system are compatible and well-maintained to promote safety and prevent accidents.
