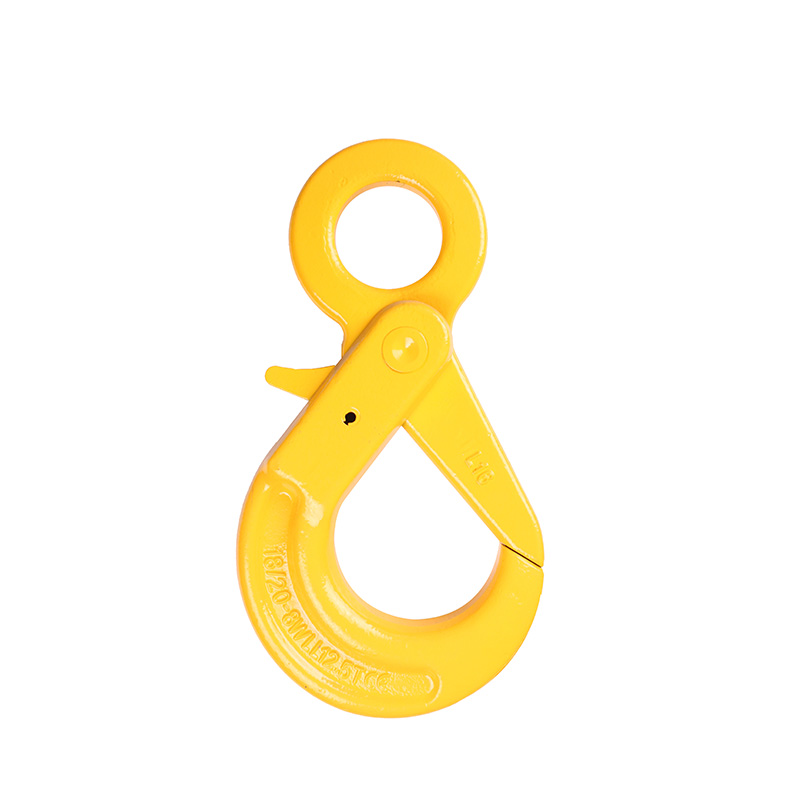

Grade 80 eye self locking hook european type

A Grade 80 Eye Self-Locking Hook, European Type, is a specific type of lifting and rigging hardware used in various industrial and construction applications. Grade 80 refers to the quality and strength of the material used in the hook, with Grade 80 indicating a high-strength alloy steel construction. These hooks are typically constructed from Grade 80 alloy steel. This material is known for its high strength and durability, making it suitable for heavy-duty lifting and rigging tasks.
  • Grade 80 eye self locking hook european type
  • Grade 80 eye self locking hook european type

Advantage:

RELATED PRODHETS:

Chain Size WLL Main Dimensions (mm) Weight
mm ton ¢1 R D ¢ H E kg
6 1.12 22 110.5 10 34 19.5 28 0.5
7+8 2 25 136 12 46 24 34 0.8
10 3.15 32 171 15 56 28.5 44 1.55
13 5.3 40.5 208.5 19.5 69 40 52 3.2
16 8 56 257.5 22 86 50.5 60 5.74
20 12.5 64.5 275 27 100 55 81 8.5
22 15 70 320 30 98 67 82 13
26 21.2 80 363 34 110 75 110 18
32 31.5 105 472 45 166 97 168 45

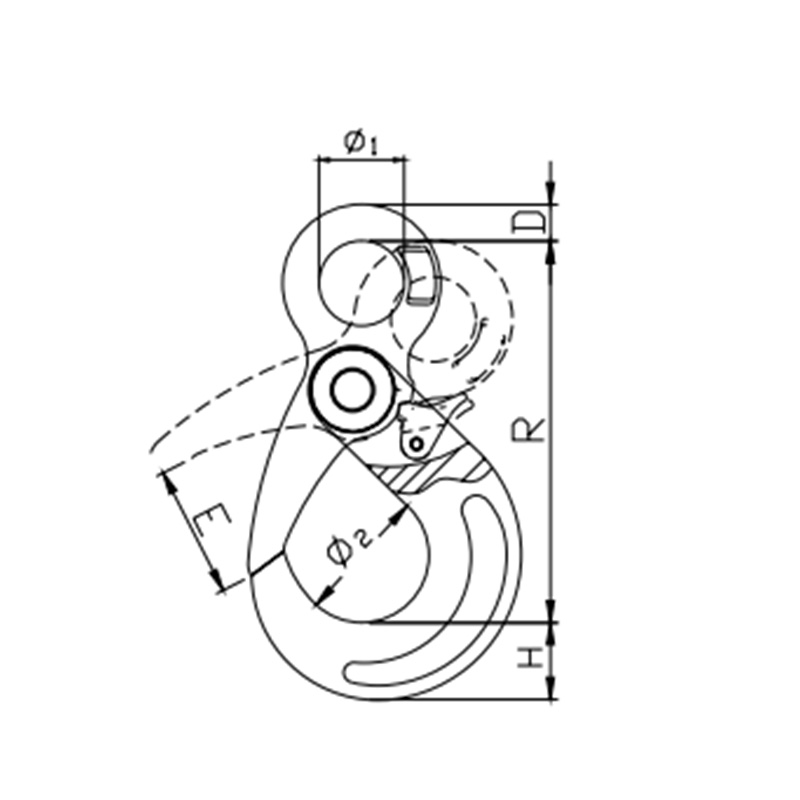

DIMENSION Drawing:

Product Description:

A Grade 80 Eye Self-Locking Hook, European Type, is a specific type of lifting and rigging hardware designed for heavy-duty applications. Here's a detailed description of its features and characteristics:
Grade 80 Material: Grade 80 refers to the quality and strength of the material used in the hook. It is typically made of high-strength alloy steel. This grade signifies that the hook can handle substantial loads while maintaining its structural integrity.
Eye Type: The hook features an eye at one end, which provides a secure point of attachment for lifting devices such as chains, slings, or cables. The eye design ensures a reliable and stable connection.
Self-Locking Mechanism: One of the key features of this hook is its self-locking mechanism. The self-locking design helps prevent accidental disengagement of the load during lifting and rigging operations, enhancing safety. This mechanism typically involves a latch or locking system that secures the load within the hook.
European Type: The "European Type" designation indicates that the hook complies with European standards, regulations, or design preferences. European standards often have specific requirements for safety and performance in lifting and rigging applications. The design and manufacturing of the hook align with these European standards.
Safety Latch: Many Grade 80 Eye Self-Locking Hooks come equipped with a safety latch. This latch provides an extra layer of security by preventing the load from accidentally slipping out of the hook. It's an important safety feature that reduces the risk of accidents.
Swivel Capability: Some models of these hooks may have a swivel feature. This swivel mechanism allows for easier positioning of the load, reducing the risk of twisting or kinking in the lifting chain or cable. Swiveling capability can improve the efficiency and safety of lifting operations.
Load Rating: These hooks are available in various load ratings, indicating the maximum weight they can safely lift. It's crucial to select a hook with the appropriate load rating for your specific application to ensure safe and efficient lifting operations.
Robust Construction: The Grade 80 Eye Self-Locking Hook is designed to withstand harsh working conditions and heavy loads. Its construction is durable and resilient, ensuring a long service life when properly maintained.
It's essential to follow safety guidelines and regulations when using this type of hook, including regular inspections, proper maintenance, and compliance with local safety standards. Using the Grade 80 Eye Self-Locking Hook, European Type, correctly and safely is crucial for both the safety of personnel and the integrity of the equipment.
