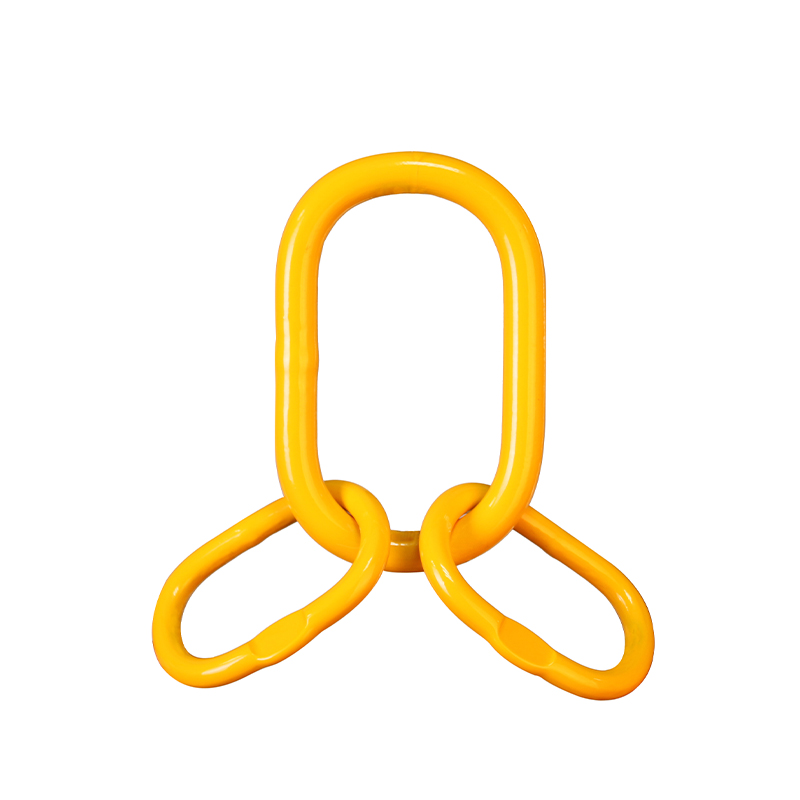

A Grade 80 European Type Master Link Assembly
is a component used in lifting and rigging applications, particularly in the context of overhead lifting and material handling. This assembly is designed to provide a secure and reliable connection between lifting slings, chains, or other components in the lifting and rigging system. Here are the key features and components of a Grade 80 European Type Master Link Assembly:
Grade 80 Steel: The "Grade 80" designation refers to the material's high-strength alloy steel, typically alloyed with elements like chromium, molybdenum, and vanadium. Grade 80 steel offers excellent strength and durability, making it suitable for heavy-duty lifting operations.
European Type Design: The "European Type" design refers to a specific shape and configuration of the master link assembly. European Type master links typically have a pear-shaped or oblong design with welded attachments for the connecting components, such as hooks, chains, or wire rope.
Master Link: The central component of the assembly is the master link itself. It typically has an oblong or pear-shaped design with attachment points for hooks, chain links, or other lifting equipment. The master link is forged or welded for maximum strength.
Attachment Points: The master link assembly has one or more attachment points, usually in the form of welded alloy steel connections. These attachment points allow for the secure connection of various lifting components, such as hooks, shackles, or chain links.
Safety Latch or Locking Mechanism: In some cases, the master link assembly may include a safety latch or locking mechanism on one or more attachment points. This feature enhances safety by preventing accidental disconnection of the attached lifting gear.
Markings and Identification: Grade 80 European Type Master Link Assemblies are typically marked with relevant information, such as the manufacturer's name, working load limit (WLL), batch or serial number, and any applicable certifications or compliance with industry standards.
Load Ratings: The Working Load Limit (WLL) of the assembly is an important specification. It indicates the maximum load that the assembly is rated to handle safely. Users must ensure that the loads applied do not exceed this limit to maintain safety.
Durability and Corrosion Resistance: Grade 80 steel is known for its resistance to wear and corrosion, making these master link assemblies suitable for outdoor or harsh environmental conditions.
Certifications and Standards: These assemblies are often designed and manufactured in compliance with industry standards, such as those set by organizations like the European Norm (EN) or the American Society of Mechanical Engineers (ASME). Certifications and compliance with these standards ensure the reliability and safety of the equipment.
Grade 80 European Type Master Link Assemblies are widely used in various industrial applications, including construction, manufacturing, shipbuilding, and more. They play a crucial role in the safe and efficient handling of heavy loads and are an integral part of many lifting and rigging systems. Users must follow safety guidelines, adhere to load limits, and conduct regular inspections to ensure the integrity of these assemblies in order to maintain a high level of safety in their operations.
