Grade 80 new type clevis shortening hook Suppliers

Home / Products / Lifting chain / G80 chain fittings / Grade 80 new type clevis shortening hook
  • Grade 80 new type clevis shortening hook
  • Grade 80 new type clevis shortening hook

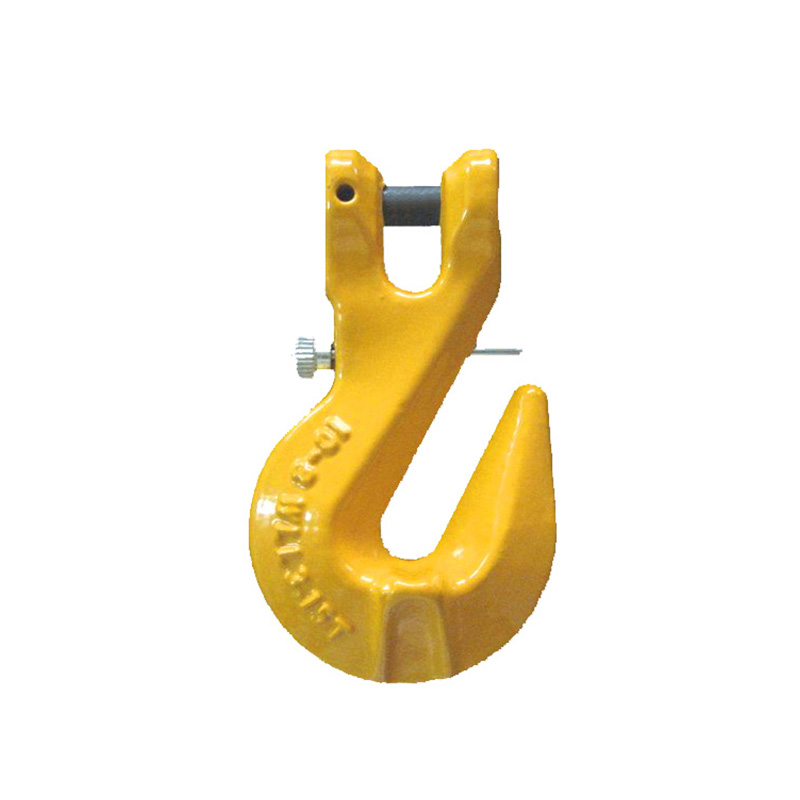

Grade 80 new type clevis shortening hook

Grade 80 Clevis Shortening Hook is a type of lifting and rigging equipment commonly used in various industrial and construction applications. These hooks are typically made from alloy steel and are designed to meet specific load-carrying and safety requirements. The term "Grade 80" refers to the alloy steel's strength, with a minimum ultimate tensile strength of 800 N/mm² (800 MPa). This grade of steel is commonly used for heavy-duty lifting and rigging applications, as it offers a good balance between strength and durability.
  • Grade 80 new type clevis shortening hook
  • Grade 80 new type clevis shortening hook

Advantage:

RELATED PRODHETS:

Chain Size WLL Main Dimensions (mm) Weight
mm ton A B E M L kg
6 1.12 8 32 8 43.5 75 0.28
7+8 2 9.5 35 11 49.5 89 0.33
10 3.15 12.5 42.5 13.2 70.5 126.5 0.88
13 5.3 15 53 16.5 90 163.5 1.85
16 8 19.5 65.5 19.2 112.5 183.5 3.24

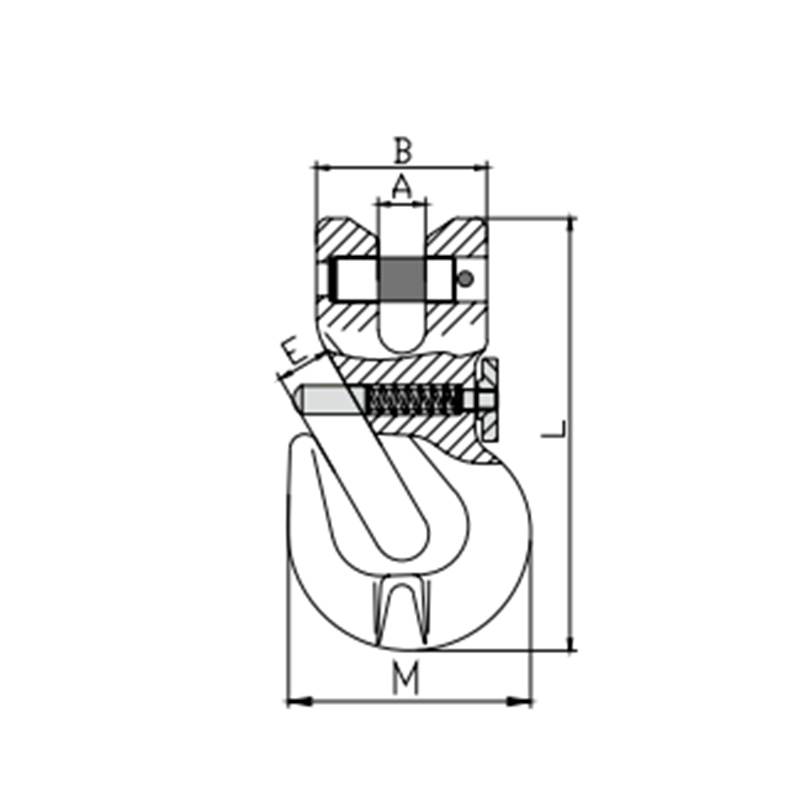

DIMENSION Drawing:

Product Description:

A Grade 80 New Type Clevis Shortening Hook is a lifting and rigging component with specific product parameters designed for use in various industrial applications. Here's a description of the product parameters you provided:
Chain Size (mm): This parameter specifies the range of chain sizes that the Clevis Shortening Hook is designed to work with. It can accommodate chains with different diameters, ranging from 6mm to 16mm. The different size options allow for flexibility in rigging applications, making it suitable for various chain sizes.
WLL (Working Load Limit) (ton): The Working Load Limit is the maximum weight that the Clevis Shortening Hook can safely support. The WLL varies depending on the chain size. Here are the WLL values for the specified chain sizes:
6mm: 1.12 tons
7mm: 2 tons
8mm: 2 tons
10mm: 3.15 tons
13mm: 5.3 tons
16mm: 8 tons
These WLL values provide clear weight limits for each chain size, ensuring that the equipment is used within safe working limits.
Weight (kg): The weight of the Clevis Shortening Hook varies depending on the chain size it is designed for. Here are the weight values for the specified chain sizes:
6mm: 0.28 kg
7mm: 0.33 kg
8mm: 0.33 kg
10mm: 0.88 kg
13mm: 1.85 kg
16mm: 3.24 kg
Knowing the weight of the hook is essential for rigging and transportation purposes, as it affects the overall weight of the rigging system.
These product parameters provide important information for selecting and using the Grade 80 New Type Clevis Shortening Hook in your specific lifting or rigging applications. It's crucial to follow the specified chain size and working load limits to ensure safe and efficient operations. Additionally, compliance with industry safety standards and regulations is essential when using such equipment.

LEAVE A MESSAGE:

OEM Grade 80 new type clevis shortening hook

Lijia Chain Co., Ltd specializes In The Production Of High-Strength Chains, Chain Rigging, And Lifting Chains. In order to further overcome the fierce market competition and further integrate with the international market, our company has introduced advanced technology and equipment, including 7 sets of high-strength chain special automatic braiding and welding machines; 3 sets of special chain intermediate frequency quenching equipment; 7 correction machines; Complete testing equipment such as tensile testing machine and hardness machine. Simply you can OEM and wholesale Grade 80 new type clevis shortening hook.
