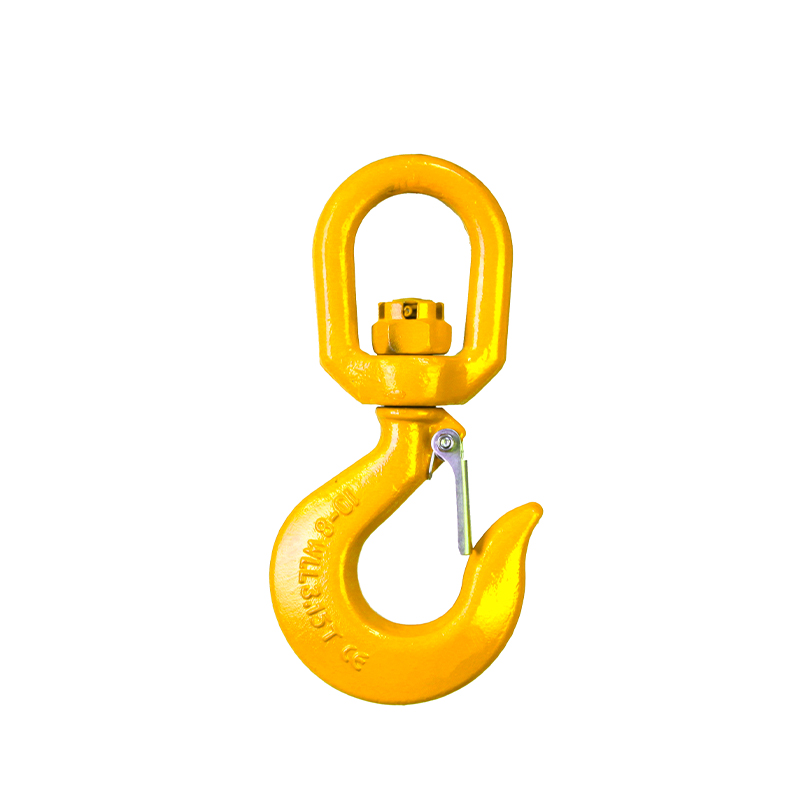

1-31T Grade 80 Crane Swivel Hook Universal With Latch

The 1-31T Grade 80 Crane Swivel Hook Universal with Latch is a sturdy and reliable lifting hook designed for crane operations. With a lifting potential starting from 1 to 31 heaps, it may deal with heavy hundreds with no trouble. Made from Grade 80 metallic, this hook offers advanced strength, sturdiness, and resistance to wear and tear. The swivel function provides super flexibility and maneuverability, whilst the latch ensures a stable attachment and forestalls accidental disengagement throughout lifting operations. It is a flexible and crucial tool for heavy-obligation lifting obligations.
  • 1-31T Grade 80 Crane Swivel Hook Universal With Latch
  • 1-31T Grade 80 Crane Swivel Hook Universal With Latch

Advantage:

RELATED PRODHETS:

Chain Size WLL Main Dimensions (mm) Weight
mm ton A E B H K L kg
6 1.12 32 22 22.5 9 112 140 0.34
7+8 2 44 26 35 15.8 150 190 1.02
10 3.15 44 28 35 15.8 162 206 1.24
13 5.3 50 35 39 18 190 242 2.25
16 8 64 43 53 25 246 316 4.66
20 12.5 70 55 51 28 282 369 7.4
22 15 79 61 58 32 332 431 10.6
26 21.2 105 81 100 40 431 547 21.4
32 31.5 105 82.5 90 40 472 603 32

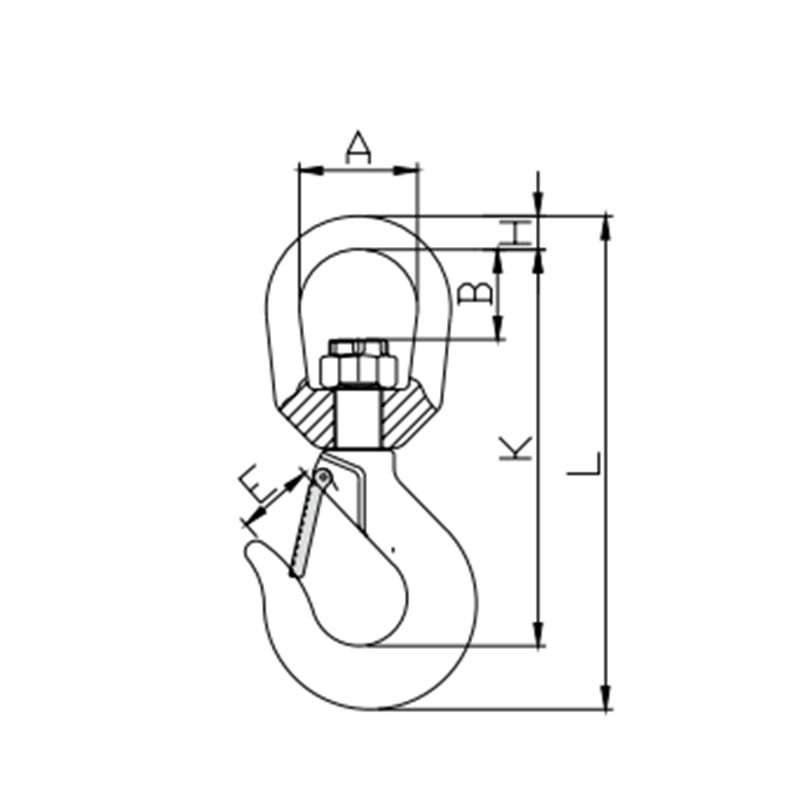

DIMENSION Drawing:

Product Description:

1-31T Grade eighty Crane Swivel Hook Universal With Latch
This 1-31T Grade 80 Crane Swivel Hook Universal With Latch is designed for lifting and carrying heavy items. Its robust structure and wonderful performance make it broadly utilized in numerous commercial fields and construction websites. Whether it's miles bridge creation, shipbuilding or oil drilling, this hook offers a strong and secure lifting answer.
Product parameters:
Chain Size: 6/7+8/10/13/16/20/22/26/32 mm
A kind of chain sizes are to be had to satisfy distinct lifting needs. From small to big tasks, you will find the proper length.
WLL (Working Load Limit): 1.12/2/3.15/5.3/8/12.5 /15/21.2/31.5 ton
This hook has a sturdy load-bearing capability, starting from 1.12 tons to 31.5 tons, that may meet the lifting necessities of different weight training.
Weight: 0.34/1.02/1.24/2.25/4.66/7.4/10.6/21.4/32 kg
The weight of each length hook has also been cautiously designed and optimized to make sure that at the same time as imparting enough load-bearing capacity, it additionally reduces its own weight as plenty as viable and improves lifting performance.
Features:
High-electricity fabric: Made of extraordinary high-energy metallic to ensure that the hook stays stable even underneath heavy strain.
Rotating layout: The rotating design of the hook permits it to evolve to lifting desires at different angles and improve paintings performance.
Strong versatility: suitable for numerous hoisting equipment and scenes, whether indoors or exterior, it is able to exert first rate performance.
Safe and dependable: Equipped with a protection tool to ensure secure operation even in excessive situations.
Easy to hold: simple structure, convenient preservation, reducing use prices.
Applicable scene:
This 1-31T Grade 80 Crane Swivel Hook Universal With Latch is suitable for a variety of eventualities that require lifting and wearing heavy items. Whether it's miles bridges, homes, ships, petroleum or different industrial fields, it could offer you with strong, safe and green lifting answers.
